Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 5000lb ASSAULT Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic and mechanical braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a KFI Two Year Limited Lifetime Warranty. The KFI AS-50 Assault Winch comes with everything you need other than an ATV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.

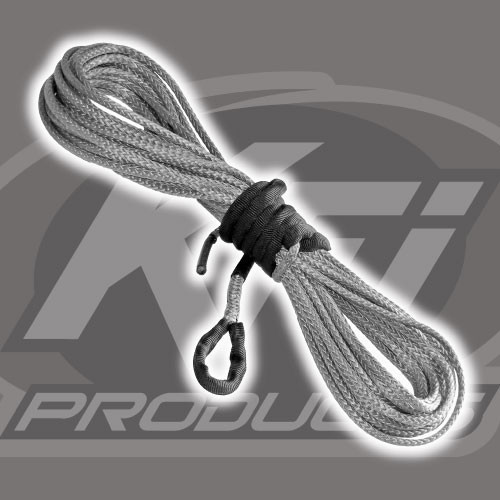

38' Synthetic Cable with 5' protective sheath and end loop #SYN23-S38
Also included is a Handheld 14' CordedRemote (ATV-HR) for those situations when you need to control your winch from a distance or dismounted from your machine. This compact high quality remote offers a more reliable control than the other wireless options. Included is a socket plug and play wiring a system so that you can store your remotewhen not in use.
Take control of your winch with the included UTV Dash Rocker Switch (UTV-DRS-K). It comes with the switchand the wiring harness with the plug for easy install.The dash rocker also comes with a blue led light insideto light up your dash at night. This rocker switch allows youto control your winch with just the touch of your finger,never having to fully let go of your steering wheel.
The all New Heavy Duty Electric Contactor (AS-CONT) protects your ATV's electrical system and switches the power distribution of your winch that is controlled by your switches.
5000 lb Assault Winch with Synthetic Cable Features:
- Eliminates wear and tear on your rollers from the hook with can cause cable wear.
- Eliminates hook clatter from going down the trail.
- Protects the winch motor and gears from pulling the cable in too far and bottoming out on the rollers.
- Keeps tension on the hook to eliminate the cable becoming loose.
- Also has slits designed in it to work as an anti-kick back for the cable if your cable was to snap.
- Looks great.
- Once you have one, everyone else that you ride, with will want one :)
Honda Assault Winch Specifications:
- Model: AS-50 Series
- Rated Line Pull: 5000 lbs.
- Motor: 12V DC, 1.22 hp Permanent Magnet
- Gear Ratio: 180:1
- Gear/Transmission: All-metal Planetary Gear Drive
- Brake: Dynamic and Mechanical
- Clutch (free spooling): All Metal Cam Activated Freespool
- Drum Size: 1.75" (D) x 3.19" (L)
- Synthetic Cable: 15/64" (D) x 38' (L) Smoke color
- Fairlead: Multi-directional POM Roller
- Control: Deluxe Dash-Mounted Dash-Rocker Control Switch and a Heavy Duty Corded Remote Switch
- Winch Dimensions: 13.9" L x 4.45" D x 4.76" H
- Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)
- Mounting Bolt Pattern: 3.00" x 4.875" (4-Hole)
- Recommended Battery: 12 Amp/hour minimum
- Warranty: Two Year Limited Lifetime
- Winch Weight: 26.0 lbs. (complete kit)
