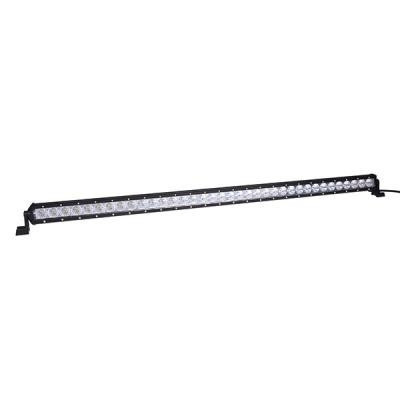

Honda Pioneer/Talon 40 Inch LED Light Bar Single Row 108 Watt Combo Obsidian Series by Quake LED


In Stock
EARN $16.80 GearBuck$ logo
Our high-powered Quake LED light bars are compatible with any vehicles existing power system between 10V thru 30V DC It compliments any vehicles such as ATVs tractors 4x4s trucks mining equipment or even boats with existing lighting

Melt the darkness away with the Quake Obsidian Series LED Light Bar! Utilizing powerful CREE diodes, Quake Obsidian Series LED technology uses less power than traditional Halogen/HID lights, causing less strain on your vehicles electrical system. This light bars combo beam pattern offers the most effective light projection for the most aggressive driving styles by combining a focused, 30 degree, long range beam, that allows drivers to see further, with a wide 120 degree beam that illuminates unseen objects.

Our high-powered Quake LED light bars are compatible with any vehicles existing power system between 10V thru 30V DC. It compliments any vehicles such as ATVs, tractors, 4x4s, trucks, mining equipment, or even boats with existing lighting.

Construction With both front and downward facing side bracket mounts, polycarbonate lenses, die-cast aluminum, and water proof housing, the Quake Obsidian Series LED Light Bar is an off-road beast. It is impact proof for the most intense activities. The compact design provides exceptional durability against debris and elements while remaining small enough to mount virtually anywhere. Each light comes with all necessary hardware, mounting brackets, and color-coded pigtails making installation a breeze.

Applications Quake Obsidian Series LED Light Bars are ideal for any off-road adventure or task that requires total illumination. Ideal for bar or roof-top mounting, this series offers the perfect lighting accessories for any truck, boat, tractor, trailer or off-road toy and are suitable for work, play, rescue, or response.

40 Inch LED Light Bar Single Row 108-Watt Combo Obsidian Series Features:

  • Bar Length 40 Inch
  • 3w High Intensity CREE LEDs
  • Lumen Output of 9,360
  • Combo Beam Light Pattern
  • Beam Color: Bright White
  • Function: Single
  • Polycarbonate Lens
  • Black Aluminum Die-Cast Body
  • Integrated Side Mounting Hardware
  • Light Color Temperature of 6000K
  • Operating Temperature between -40 degree F to +140 degree F
  • Operating Voltage of 10-30V DC
  • Optimized for Use with 12V and 24V Vehicles
  • Amp Draw 9.0
  • IP67 Waterproof Rating
  • 50,000+ Hours of LED Lifetime

Product Fitment

Honda Pioneer 2021 Honda Pioneer 700-4 2021 Honda Pioneer 700 2021 Honda Pioneer 500 2021 Honda Pioneer 1000-5 2021 Honda Pioneer 1000 2020 Honda Pioneer 700-4 2020 Honda Pioneer 700 2020 Honda Pioneer 500 2020 Honda Pioneer 1000-5 2020 Honda Pioneer 1000 2019 Honda Pioneer 700-4 2019 Honda Pioneer 700 2019 Honda Pioneer 500 2019 Honda Pioneer 1000-5 2019 Honda Pioneer 1000 2018 Honda Pioneer 700-4 2018 Honda Pioneer 700 2018 Honda Pioneer 500 2018 Honda Pioneer 1000-5 2018 Honda Pioneer 1000 2017 Honda Pioneer 700-4 2017 Honda Pioneer 700 2017 Honda Pioneer 500 2017 Honda Pioneer 1000-5 2017 Honda Pioneer 1000 2016 Honda Pioneer 700-4 2016 Honda Pioneer 700 2016 Honda Pioneer 500 2016 Honda Pioneer 1000-5 2016 Honda Pioneer 1000 2015 Honda Pioneer 700-4 2015 Honda Pioneer 700 2015 Honda Pioneer 500 2014 Honda Pioneer 700-4 2014 Honda Pioneer 700 2014 Honda Pioneer 500
Honda Talon 2021 Honda Talon 4 2021 Honda Talon 2020 Honda Talon 4 2020 Honda Talon 2019 Honda Talon
