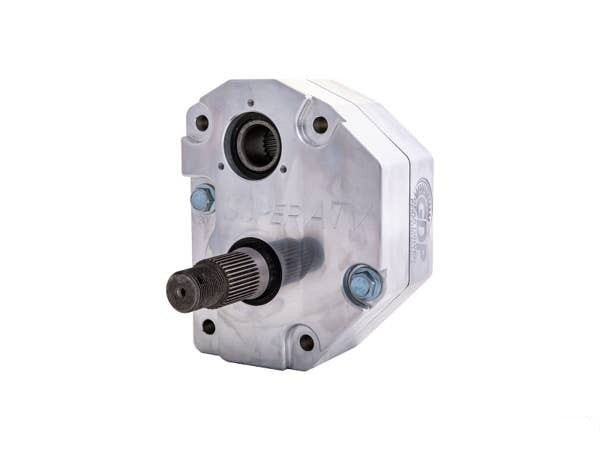

Honda Pioneer 1000-3 / 1000-5 / 1000-6 4" Portal Gear Lift by SuperATV

Why You'll Love It

• 4" Portal Lift adds ground clearance directly at the hubs
• 15% or 30% Gear Reduction adds torque and relieves drivetrain stress
• Selectable Idler Setup lets you choose dual- or single-idler gearing
• Cast or Billet Housings let you choose the construction that fits your build
• Limited Lifetime Warranty protects your purchase

GDP Portals Are Game-Changing

Get a GDP Portal Gear Lift to get power and performance that you can't find anywhere else. With a 4" Portal Gear Lift for your Honda Pioneer 1000, you have options. Choose 15% or 30% gear reductions and cast or billet aluminum housings—you can optimize for the riding you love most. If you like to break parts like it's going out of style, upgrade to dual idlers. They give you maximum strength for wild rides.

What Is a Dual Idler?

After years of research and development, GDP has created dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Precision CNC grinding ensures perfect mating. Gears are made from the industry's toughest 9310 steel alloy.

Perfect No Matter How You Ride

GDP Portal Gear Lifts are made to conquer any terrain you face. Get a 15% gear reduction for faster rides with enough torque to get wild. If you want the ultimate geared-down, torqued-up ride for monster tires, go with a 30% gear reduction. Grab dual idlers on either if you're the kind of rider that can break anything.

This Gear Reduction Protects Your Drivetrain

GDP Portals have a gear reduction built into the hub. Because it's at the end of your drivetrain instead of in the transmission, the whole system benefits. Your axles, differential, prop shafts, and transmission will work less and wear less thanks to these portals.

Designed with Strength Throughout

• Cast and billet aluminum housings are the thickest and strongest available
• 5/16" backing plates made from advanced steel alloy
• Housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• No vents—they do more harm than good

Advanced Gaskets, Seals, and Bearings

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• Sealed input gear and double-lipped output seal
• 100% sealing coverage throughout to prevent oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

What's Included

• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
• (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• (2) Caliper adapter plates
• (2) Steel steering arms
• Extended brake lines
• All required hardware, including recessed castle nut socket

Key Features

• Available with billet or cast aluminum housing
• Dual idler gear configuration maximizes strength
• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• 1.5 in. diameter 4340 hardened steel drive shaft
• Universal hubs work with bolt patterns: 4/156, 4/137, 4/115, and 4/110
• Dual idler gear configuration adds a 3/4" front and rear offset—1.5" total extension
• Lighter than the competition

Max Tire Size Recommendations for 4" Portal Gear Lift

Max tire sizes are measured at full compression and full turn. The given tire sizes are the largest that fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.
